| Brand Name: | BENENV |
| Model Number: | BNPF-1000 |
| MOQ: | 1 Set |
| Price: | Negotiatable |
| Delivery Time: | 4-9weeks |
| Payment Terms: | T/T |

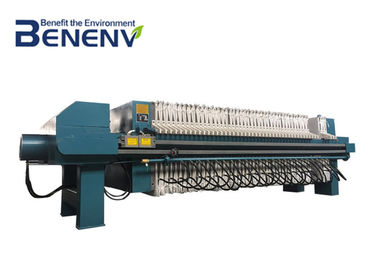

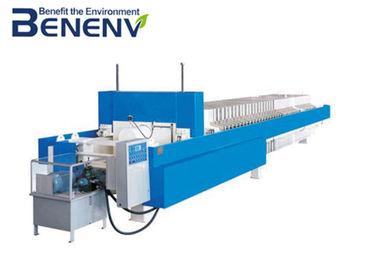

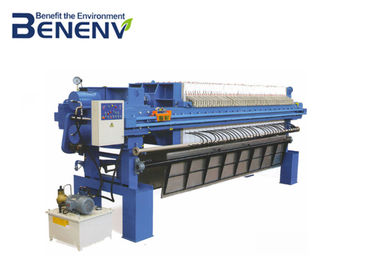

Hydraulic Plate And Frame Type Sludge Oil Filter Press Machine For Solid-liquid Separator
Structural Advantages
Van filter plate
1. The filter plate is made of reinforced polypropylene, with overall variable cross-section design, so that its flow resistance is small, the flow rate is fast, and the filtering efficiency is higher than that of the same filter plate;
2. Adopt special raw material formula and pressing process, equipped with 4000 ton high pressure hydraulic press, and the mechanical performance indexes of the filter plates are higher than the relevant national standards;
3. The filter plate is made of TPE elastomer and alkali free glass fiber polypropylene, which makes the filter plate have the elasticity of rubber filter plate, and enhance the toughness and rigidity of polypropylene filter plate. After being processed by CNC machining center, the flatness of filter plate is less than 25 μ m, which makes the filter plate have good sealing performance when it is pressed, and there is no spray or leakage when it is fed.
|
Model |
Feed Material concentration (%) |
Filter Area (m²) |
Power (KW) |
Capacity (t/h) |
Weight (kg) |
Overall Dimension (mm) |
| G50-80 | 20-40 | 50 | 15 | 0.80-1.60 | 3456 | 4110*1400*1230 |
| G80-80 | 20-40 | 80 | 15 | 1.32-2.60 | 4584 | 4990*1400*1230 |
| G100-100 | 20-40 | 100 | 24 | 1.70-4.00 | 6628 | 4900*1900*1600 |
| G150-125 | 20-40 | 150 | 27.5 | 2.50-5.00 | 9800 | 6010*2000*1600 |
| G200-125 | 20-40 | 200 | 35.5 | 3.00-7.00 | 12500 | 7050*2260*1600 |
| G250-125 | 20-40 | 250 | 44.5 | 4.00-8.00 | 14000 | 7890*2260*1600 |
| G300-125 | 20-40 | 300 | 52.5 | 5.00-7.00 | 25000 | 8800*2260*1925 |
| G400-150 | 20-40 | 400 | 62.5 | 6.00-10.00 | 30000 | 10670*2260*1925 |
| G500-150 | 20-40 | 500 | 82.5 | 8.00-12.00 | 36500 | 12650*2260*1925 |
Application
Urban sewage sludge, tap water sludge, dredging sludge, industrial sludge, industrial solid waste,Chlor alkali, inorganic salt, rayon viscose, glycerin, silica, dye, pigment, silicic acid, sodium sulfate,Manganese sulfate, iron hydroxide, titanium dioxide, fluorine chemical industry, lithium chemical industry, silicon carbide, nickel cobalt chemical industry,Non ferrous metals, metal tailings, clean coal, tail coal, non-metallic ore
Wine, rice wine, alcohol, edible oil, citric acid, fruit juice pectin, soy sauce, syrup,All kinds of starch, concentrated soup, seaweed gum, beer wort, palm oil, beet sugar, sucrose,Pharmaceutical intermediates, APIs, Chinese patent medicines, fermentation broth, enzyme preparations
Packing and Delivery
1. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
2. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
|
|
| Brand Name: | BENENV |
| Model Number: | BNPF-1000 |
| MOQ: | 1 Set |
| Price: | Negotiatable |
| Packaging Details: | Export standard package or customer reqiurment |
| Payment Terms: | T/T |
Hydraulic Plate And Frame Type Sludge Oil Filter Press Machine For Solid-liquid Separator
Structural Advantages
Van filter plate
1. The filter plate is made of reinforced polypropylene, with overall variable cross-section design, so that its flow resistance is small, the flow rate is fast, and the filtering efficiency is higher than that of the same filter plate;
2. Adopt special raw material formula and pressing process, equipped with 4000 ton high pressure hydraulic press, and the mechanical performance indexes of the filter plates are higher than the relevant national standards;
3. The filter plate is made of TPE elastomer and alkali free glass fiber polypropylene, which makes the filter plate have the elasticity of rubber filter plate, and enhance the toughness and rigidity of polypropylene filter plate. After being processed by CNC machining center, the flatness of filter plate is less than 25 μ m, which makes the filter plate have good sealing performance when it is pressed, and there is no spray or leakage when it is fed.
|
Model |
Feed Material concentration (%) |
Filter Area (m²) |
Power (KW) |
Capacity (t/h) |
Weight (kg) |
Overall Dimension (mm) |
| G50-80 | 20-40 | 50 | 15 | 0.80-1.60 | 3456 | 4110*1400*1230 |
| G80-80 | 20-40 | 80 | 15 | 1.32-2.60 | 4584 | 4990*1400*1230 |
| G100-100 | 20-40 | 100 | 24 | 1.70-4.00 | 6628 | 4900*1900*1600 |
| G150-125 | 20-40 | 150 | 27.5 | 2.50-5.00 | 9800 | 6010*2000*1600 |
| G200-125 | 20-40 | 200 | 35.5 | 3.00-7.00 | 12500 | 7050*2260*1600 |
| G250-125 | 20-40 | 250 | 44.5 | 4.00-8.00 | 14000 | 7890*2260*1600 |
| G300-125 | 20-40 | 300 | 52.5 | 5.00-7.00 | 25000 | 8800*2260*1925 |
| G400-150 | 20-40 | 400 | 62.5 | 6.00-10.00 | 30000 | 10670*2260*1925 |
| G500-150 | 20-40 | 500 | 82.5 | 8.00-12.00 | 36500 | 12650*2260*1925 |
Application
Urban sewage sludge, tap water sludge, dredging sludge, industrial sludge, industrial solid waste,Chlor alkali, inorganic salt, rayon viscose, glycerin, silica, dye, pigment, silicic acid, sodium sulfate,Manganese sulfate, iron hydroxide, titanium dioxide, fluorine chemical industry, lithium chemical industry, silicon carbide, nickel cobalt chemical industry,Non ferrous metals, metal tailings, clean coal, tail coal, non-metallic ore
Wine, rice wine, alcohol, edible oil, citric acid, fruit juice pectin, soy sauce, syrup,All kinds of starch, concentrated soup, seaweed gum, beer wort, palm oil, beet sugar, sucrose,Pharmaceutical intermediates, APIs, Chinese patent medicines, fermentation broth, enzyme preparations
Packing and Delivery
1. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
2. The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request.
