| Brand Name: | BENENV |
| Model Number: | BRD-500 |
| MOQ: | 1 Set |
| Price: | Negotiatable |
| Delivery Time: | 6-10 weeks |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union,MoneyGram |

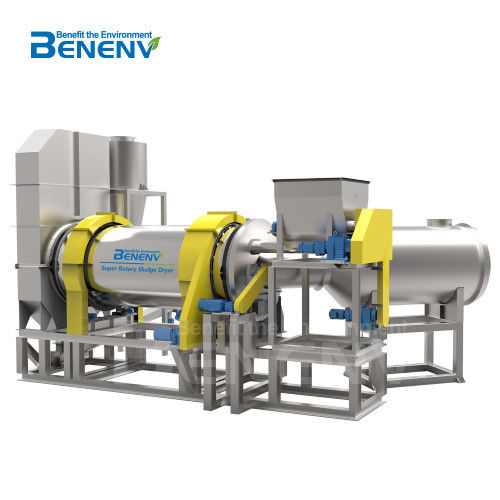

Super Rotary Sludge Dryer High Thermal Efficiency Wastewater Sludge Treatment
The sludge cake is pre-crushed by the stirring device of the feeding hopper, then conveyed by the twin-screw feeder to the main rotating drum, where the sludge will be crushed into small pieces of size 1-3 mm. The wall plates of the drum drives the small sludge particles forward, by lifting and dropping it, while being continuously stirred and crushed by the disintegrating shaft. The specific surface area of the material increases the contact area with the hot air and accelerates the drying process with high efficiency.
| Standard Models | Dimensions(mm) | Equipment Weight(ton) | Material Handling Capacity (Kg/hr.) | Water Evaporation Capacity (Kg/hr.) | ||
| L | W | H | ||||
| BRD-150 | 7000 | 2215 | 2270 | 6.5 | 200~240 | 150~180 |
| BRD-300 | 8000 | 3500 | 3200 | 10 | 400~480 | 300~360 |
| BRD-500 | 8600 | 3700 | 3600 | 17 | 650~800 | 500~600 |
| BRD-1000 | 10500 | 4600 | 4500 | 28 | 1300~1600 | 1000~1200 |
| BRD-2000 | 12000 | 5800 | 4600 | 65 | 2600~3200 | 2000~2400 |
| BRD-2500 | 14500 | 7200 | 5200 | 76.5 | 3250~4000 | 2500~3000 |
Using of Sludge Dryer Drying Machine:
The sludge dryer drying machine mainly consists of the fan, the dispersing device, the belt feeding machine, the feeding machine, the rotary drum, the heat source, the belt type discharging machine, the unloading device and the distribution cabinet. Therefore, the working area of the Vantaa sludge dryer includes the feeding area, the inclined lift plate area, the cleaning area and the guide area.
1. In the guide area, the wet sludge enters the zone and the hot wind contact with the hot air rapidly evaporates. The materials are copied by the large guide Angle, which is not bonded to be imported into the next workspace.
2. In the discharge area, the drum is not set in this area, and the material can roll to the discharge port in this area to complete the drying process.
3. Cleaning area, wet sludge in this area is taking up forming curtain material status, copy board phenomenon of wall material to fall easily formed binding drum, cleaning device is designed in this area due to the equipment, cleaning device was reasonably clean the inner surface adhesion material, in this process, the cleaning device for material group ball agglomerate also plays a role of broken, thus increasing the heat exchange area, and to improve the drying rate;
4. The feed board area, wet sludge in the region has a low moisture state of loose, material in this area has not sticking phenomenon, after heat exchange materials to achieve the required moisture state, in the final discharge area. River channel sludge with a variety of microorganisms has been neglected and has brought many difficulties to urban environmental governance. The sludge drying machine developed by our factory can dry the sludge and facilitate the production of sludge bio-organic fertilizer, which is the preferred drying equipment of organic fertilizer manufacturers.
With the augmentation of the national economic strength, national environmental protection consciousness enhancement, the urban sewage treatment industry gets rapid development, urban sludge yield increasing, sludge disposal and utilization problem is becoming more and more attention by people. The drying of sludge can make the sludge agricultural use, fuel use, incineration and even reduce landfill disposal.
