| Brand Name: | BENENV |
| Model Number: | OA2-20 |
| MOQ: | 1 Set |
| Price: | Negotiatable |
| Delivery Time: | 2-6 weeks |
| Payment Terms: | T/T |

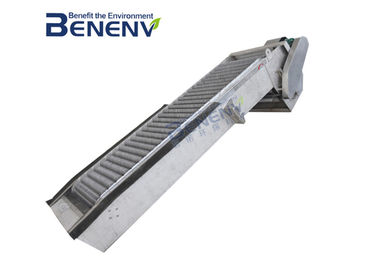

Cost-effective Mechanical Bar Screen Price For Mbr Sewage Wastewater Treatment
Introduction
It is used for mechanical treatment of municipal sewage and industrial waste water, filtration of floating, precipitated and suspended substances in sewage. Due to the inclined installation of wedge-shaped screen drum, it prevents the separation of filter residue when the wedge-shaped screen drum flows in and out of the screen drum. At the same time, the screen is cleaned by the nozzle on the drum, and the filter residue is compressed and dehydrated while being fished out. At the same time, the filter residue is sent out of the water channel, and is also pressed and dehydrated. The fine grid is a cylinder type drum with rotation, which has the function of central screw transmission and function. The three in one function of filtering, transmission and pressing of the fine grid is driven by a gear motor.
Model & Installation Dimensions
| Specifications of OA2-20 Rotary Drum Screen | |||
| Main Parameters |
Maximum Discharge
|
I/s | 762 |
| Aperture of Grid Aperture | mm | 3 | |
| Qmax Head Loss | mm | 200 | |
| Width of grid | mm | 2040 | |
| Depth of the channel | mm | 2000 | |
| Height | mm | 6200 | |
| Water Speed | m | 3.6 | |
| Installation Dimension | Outlet height | mm | 800 |
| Screw Diameter | mm | 508 | |
| Installation Angle | ° | 35 | |
| Solid content after pressing | % | 35~40 | |
| Power | Kw | 2.2 | |
Product Application

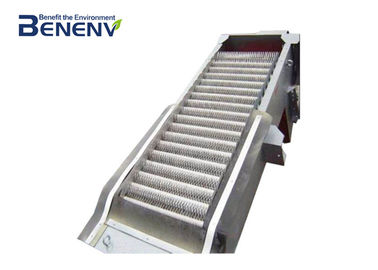

Waste Water Pretreatment Motorized Rotary Type Mechanical bar screen , It is composed of many same rake gear parts interlaced and parallel assembled into a set of closed rake gear chain, driven by the motor and reducer, through a set of grooved wheels and chain composed of continuous top-down circular movement, to continuously remove the grille. When the rake tooth chain running to the upper and back of the equipment, due to the sprocket and bending of the guiding role of the rail, can make parallel rake tooth row dislocation, so that the solid dirt on its own weight fall into the slag tank, fall off not clean, this kind of grille easy to take the dirt to the grid after the channel.
Main Features
Installation Sizes
1,rake 2,collecting hopper 3,screen body 4,deslagging plate 5,screw conveyor 6,conveyor & squeeze drum 7,backflow pipe 8,bracket 9,cleaning drum 10, cleaning drum
11,discharge outlet
Packing and Delivery
1. Before packing, all our screens must be covered by plastic film, to protect machine from any damage like water.
2. After checking and wrapping, the screen will be placed into a good fumigation chamber with shipping mark
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System,
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram
