| Brand Name: | BENENV |
| Model Number: | WLS-200 |
| MOQ: | 1 Cubic Meter |
| Price: | Negotiatable |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | T/T |

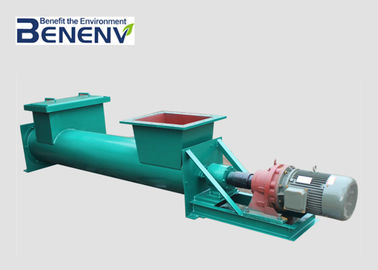

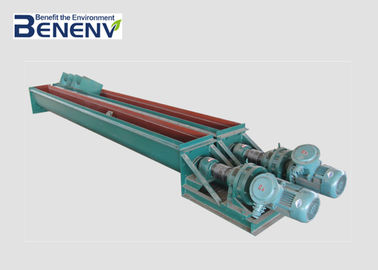

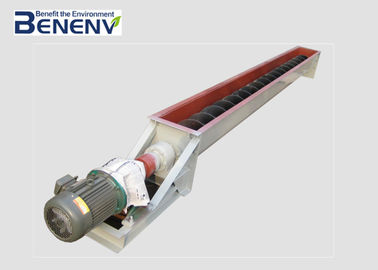

OEM Separated Sludge Shaftless Screw Conveyer To Waster Water
Introduction
Model & Installation Dimensions
Technical parameters
| Model | WLS150 | WLS200 | WLS250 | WLS300 | WLS400 | WLS500 | ||
| Screw diameter(mm) | 150 | 184 | 237 | 284 | 365 | 470 | ||
| Casing pipe diameter | 180 | 219 | 273 | 351 | 402 | 500 | ||
| Operating angle(α) | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° | ≤30° | ||
| Max delivery length(m) | 12 | 13 | 16 | 18 | 22 | 25 | ||
| Capacity(t/h) | 2.4 | 7 | 9 | 13 | 18 | 28 | ||
|
Motor |
Model | L≤7 | Y90L-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y160M-4 | Y160M-4 |
| Power | 1.5 | 2.2 | 3 | 5.5 | 11 | 11 | ||
| Model | L>7 | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160L-4 | Y160L-4 | |
| Power | 2.2 | 3 | 4 | 7.5 | 15 | 15 | ||
Main Features
Installation Drawing
Product Details
| Certification | SGS/CE/ISO 9001 |
| Horizontal Rotation speed | 18rpm |
| Incline Rotation speed | >18rpm |
| Material | SS304/316 |
| Screw diameter | 380mm |
| Conveying length | customize |
| Motor Power | 1.1-3KW |
| Operation | Full automatic |
| Protection Level | IP55 F |
| Warranty | 1 year |
| Product Keywords | slurry screw conveyor,sludge transportion,sludge cake conveyor |
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
Why Choose Us?
1. BENENV has more than 2 decades of experience in wastewater and sludge treatment.
2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
|
|
